Power House Racing - PHR Crank Case/Oil Temp Adapter for 2JZ - 01011081

More useful sensors for racing applications

The PHR Crank Case / Oil temp Adapter for the 2JZ engine was developed to create an easy solution for racing applications for getting oil temperature and crank case pressure data. By sacrificing the oil level sensor, we are able to get two different sensors added to our motor that are more important in a racing application.

Add the sensors

When adding the sensor adapter to the shopping cart, you can select which sensors to include or exclude. This adapter can be used as a simple plug if you wanted to just exclude the sensors all together.

Don't forget

THIS REQUIRES THE REMOVAL OF THE OEM OIL LEVEL SENSOR. We highly recommend adding an oil pressure sensor to monitor your engine health. We have multiple solutions for this.

Location is key

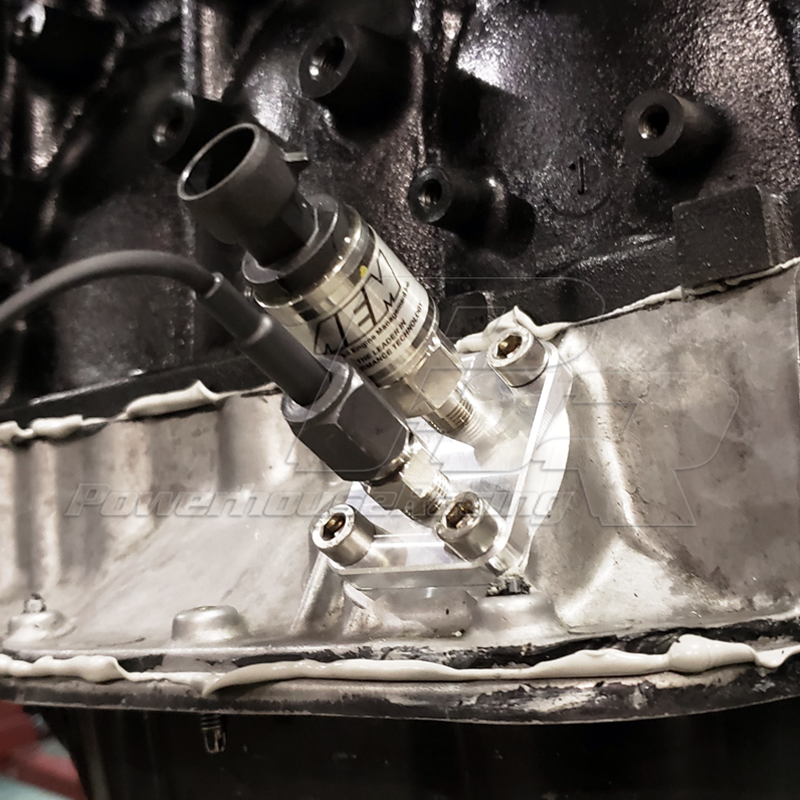

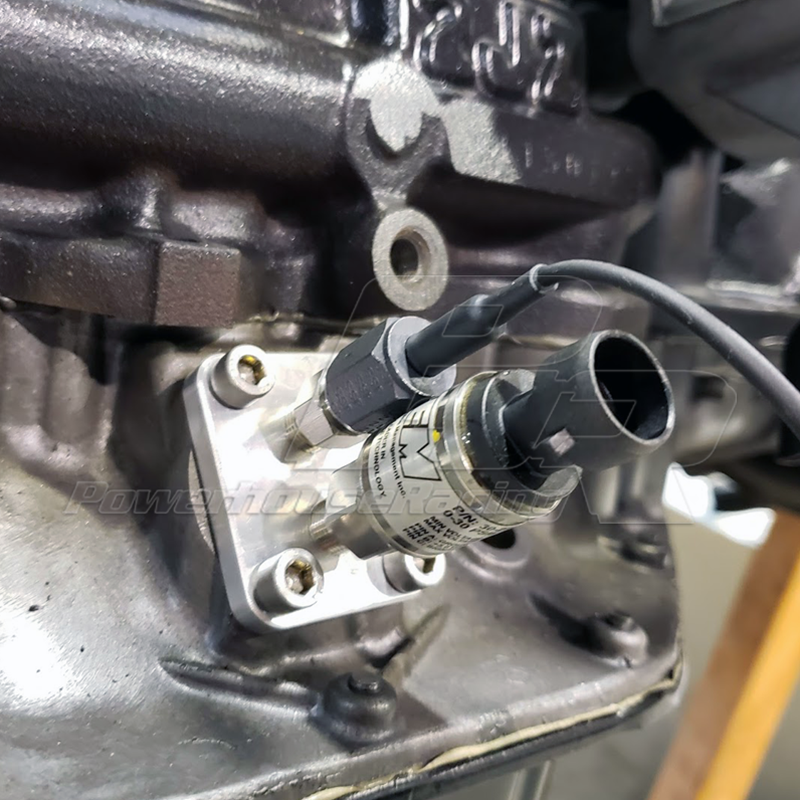

The location of this adapter is ideal for getting both oil temperature and crank case pressure readings. The oil probe, dips right into the middle of the oil pan bath, and the crank case readings are directly below the pistons inside the crank case.

Compatibility

This adapter can be used with both rear sump, as found in the MKIV Supra or SC300, or front sump as found in the GS300 or IS300.

What's included

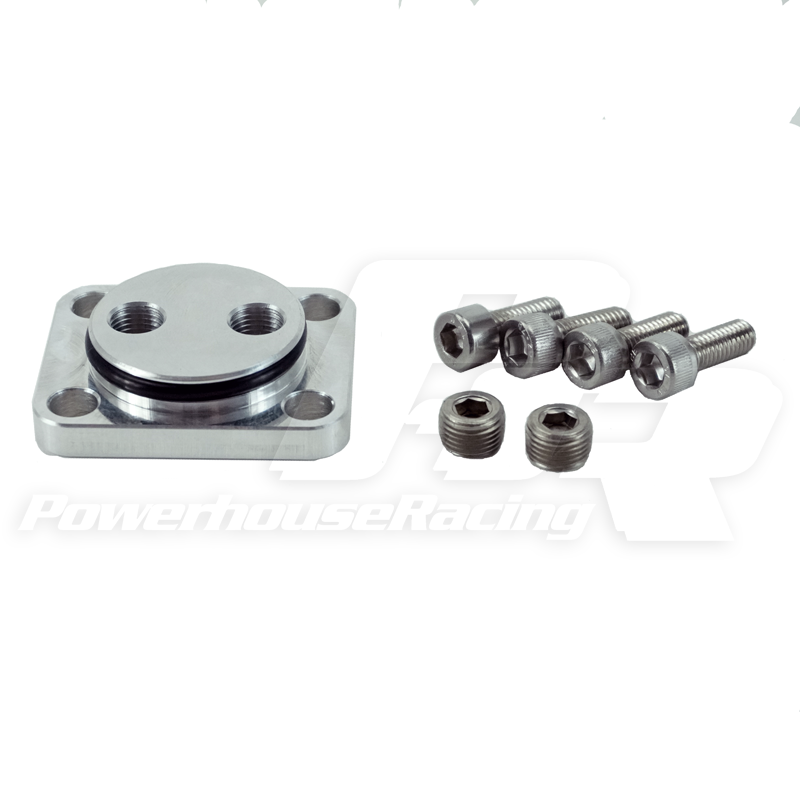

The PHR Crank Case Pressure/Oil Temp Adapter Kit includes:

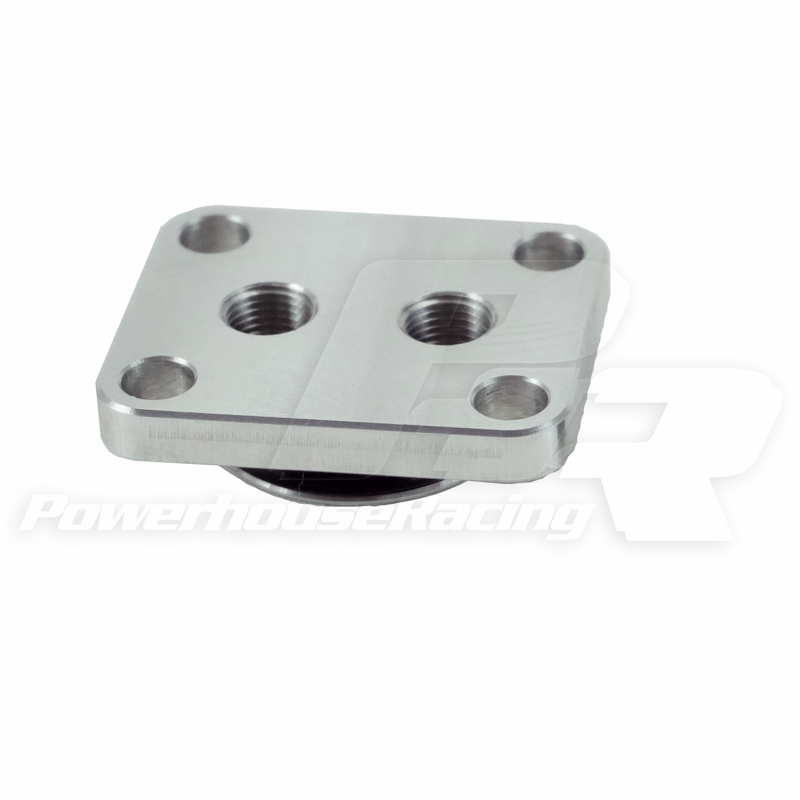

• CNC Machined Aluminum Plate w/ O-ring
• (4) M6 mounting bolts
• 1/8" NPT Plugs

Add your temperature sensor to the kit HERE,
any pressure sensor can be used but we suggest a map sensor to also record potential Crank case vacuum
