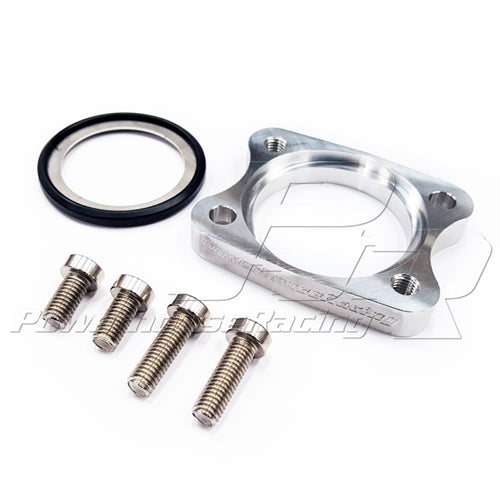

Power House Racing PHR Lower Waterneck Rotator for 2JZGTE - PHR 01010602
Power House Racing PHR Lower Waterneck Rotator for 2JZGTE - PHR 01010602 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Free Ground Shipping In Canada Over $250 Live Now! - Applied Automatically At Checkout - Freight & Oversize Excluded
With single turbo kits, one of the biggest problems with installation is the routing of the factory manifold. The Powerhouse Racing Lower Waterneck Rotator is the ultimate solution for turning your waterneck away from your turbo manifold on your 2jzgte.
With the lower waterneck in the factory position, there are two problems:
First, the waterneck gets in the way of the runners on many turbo manifolds. See picture below.
Second, the waterneck is blocking the ideal routing for compressor outlet to the intercooler piping. See picture below.
The PHR Lower Waterneck Rotator moves the waterneck out of this terrible location allowing the manifold to fit properly and the compressor outlet to be free of obstruction. See picture below.
NEW REVISION!!!
The thermostat has two functional parts to it: the thermostat valve itself, which opens at a certain temperature, and at the same time, a valve that closes off the radiator bypass hole when the thermostat opens.
Normal operation of the thermostat and waterflow is as follows: when the thermostat is closed, the bypass hole is open. This flows the water directly out of the head and back to the water pump at low coolant temperatures, like during warmup and no water flows through the radiator. Once the coolant reaches the thermostat opening temperature (usually 180 degrees or 160 degrees), the thermostat opens and the bypass hole is closed off, forcing water through the radiator, and cooling it down.
Take a look at the following picture to see what hole needs to be blocked off when the valve opens.
With these designs, the thermostat is moved away from the bypass hole to accommodate the rotator itself, and the thermostat installs in the lower waterneck boss. This new position makes it so the bypass hole can never fully close, so even when the thermostat is open, the bypass hole is not closed and a large amount of the water is not allowed to go through the radiator and be cooled. This reduces the efficiency of the cooling system.
The NEW Powerhouse Racing Lower Waterneck Rotator solves this problem. The position of the thermostat remains in the factory location, allowing the thermostat to close off the bypass hole like it is supposed to and moving flow of all the water through the radiator, maximizing cooling system efficiency.
See the picture below to see the position of the thermostat in the NEW Powerhouse Racing Lower Waterneck Rotator:
