Power House Racing - PHR Oil Temperature Sensor for 2JZ - 01010767
JZ Adaptor for this sensor can be found HERE

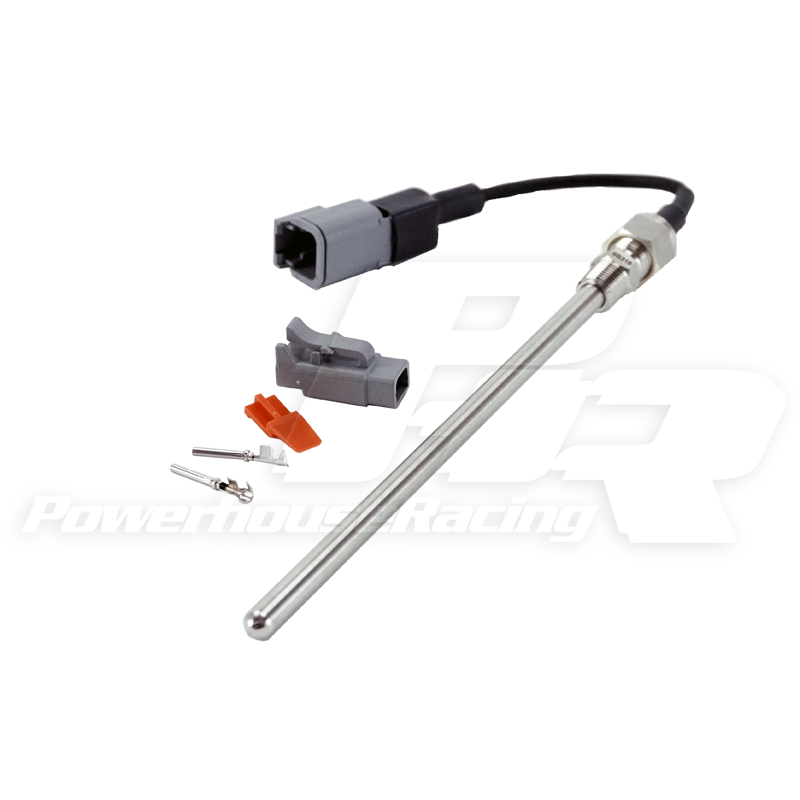

The PHR Oil Temperature Sensor is a thermistor type sensor. It is 6 inches long to be able to protude all the way into the oil from above the oil level sensor location using either our Crank Case/Oil Temperature Adapter or our ORB/Oil Temp/Crank Case Pressure Combination Adapter. It comes with DTM Connector and terminals as well as a stainless steel compression fitting.
| PHR OIL TEMPERATURE SENSOR REISTANCE CHART | ||
| Temperature F | Temperature C | Sensor Resistance |
| -67 | -55 | 963849 |
| -58 | -50 | 670166 |
| -49 | -45 | 471985 |
| -40 | -40 | 336479 |
| -31 | -35 | 242681 |
| -22 | -30 | 53092 |
| -13 | -25 | 176974 |
| -4 | -20 | 130421 |
| 5 | -15 | 97081 |
| 14 | -10 | 72957 |
| 23 | -5 | 55329 |
| 32 | 0 | 32650 |
| 41 | 5 | 25392 |
| 50 | 10 | 19901 |
| 59 | 15 | 15712 |
| 68 | 20 | 12493 |
| 77 | 25 | 10000 |
| 86 | 30 | 8057 |
| 95 | 35 | 6531 |
| 104 | 40 | 5326 |
| 113 | 45 | 4368 |
| 122 | 50 | 3602 |
| 131 | 55 | 2986 |
| 140 | 60 | 2488 |
| 149 | 65 | 2083 |
| 158 | 70 | 1752 |
| 167 | 75 | 1480 |
| 176 | 80 | 1255 |
| 185 | 85 | 1070 |
| 194 | 90 | 915.5 |
| 203 | 95 | 786.6 |
| 212 | 100 | 678.6 |
| 221 | 105 | 587.6 |
| 230 | 110 | 510.6 |
| 239 | 115 | 445.3 |
| 248 | 120 | 389.6 |
| 257 | 125 | 341.9 |
| 266 | 130 | 301 |
| 275 | 135 | 265.8 |
| 284 | 140 | 235.3 |
| 293 | 145 | 208.9 |
| 302 | 150 | 186.1 |
