ECUMaster GPS to CAN with IMU - Autosport V2

New and Improved GPS to CAN V2

• 25Hz refresh rate (20Hz on V1)
• IMU no longer needs to undergo calibration
• Improved measurement stability

ECUMaster GPS to CAN V2 module assures high-accuracy position tracking with a 25 Hz update rate. The module can use four navigation systems at the same time: GPS, GLONASS, Galileo, and BeiDou. An external, active antenna with a magnetic base is included with the module. Thanks to a built-in 3-axis accelerometer and gyroscope, the device can deliver information about speed, position, heading, altitude, accelerations, and angular velocities. All GPS data is transmitted via CAN bus. The GPS module is intended to work with the ADU display/logger and allows real-time lap timing, predictive timing, as well as data analysis after the session with a track map visualization.

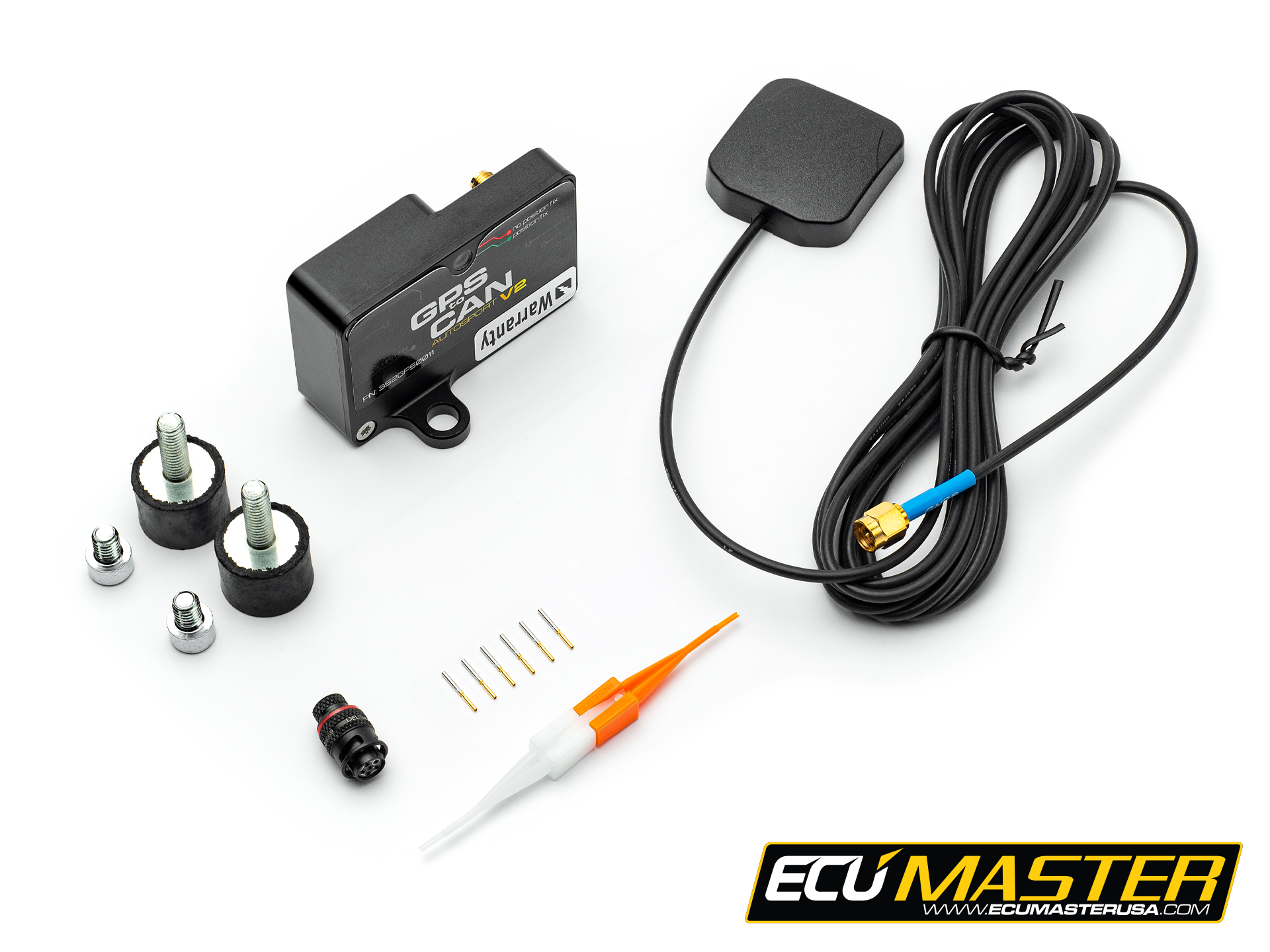

What's in the box?

• GPS to CAN Module
• Vibration isolating mounts
• 6 position Deutsch Autosport connector with terminals
• GPS Antenna
• Deutsch Autosport Depinning Tool

The GPS to CAN V2 device must be programmed using a CAN interface. The ECUMaster USB to CAN, Kvaser, or Peak PCAN may be used.

For additional information such as wiring instructions, mounting requirements, CAN-bus messaging, and general installation notes please see the user manual linked below.

Manuals and downloads:

GPS to CAN V2 - User Manual

GPS to CAN V2 - 3D Model

GPS to CAN V2 - Drawings
