TurboZentrum - 10AN Oil return flange T3 / T4 - Tube flexible SS pipe 220MM / 8.75'' Length

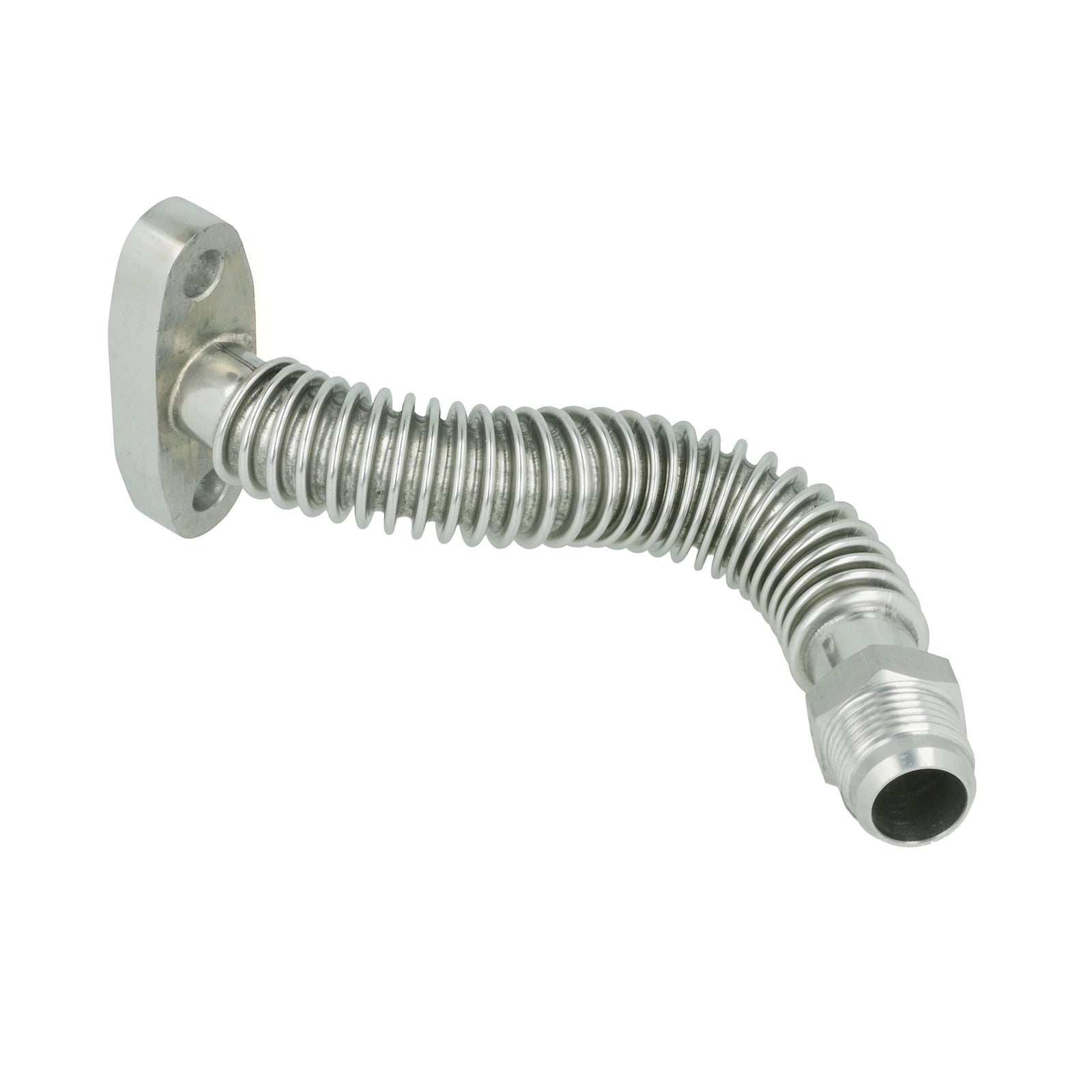

Return flange with flexible pipe
Complete stainless steel pipe with flexible part, flange and Dash 10 thread
Our new oil return flange is the solution to all oil return problems. It combines a solid pipe, which is essential in hot regions, but offers the flexibility that only a hydraulic line can otherwise offer. Once bent, it stays in position and does not need to be fixed in a complicated manner. Vibrations and engine movements don't bother him. At the end there is a Dash 10 external thread so that you can continue with hydraulic connections and hydraulic lines in a highly flexible manner. The elongated holes provide a certain degree of flexibility for other turbochargers with a similar flange pattern. The cross section of the return hole is designed in the correct size for the necessary return flow of oil.
Material: stainless steel 1.4301 / SS304
Inner diameter of the pipe: 15.2mm
Overall flange dimensions: 70mm x 26mm
Hole spacing: 50mm
Hole diameter: 9mm
Total length: 240mm
Flex piece length: 63mm
Inner diameter of the pipe: 15.2mm
Overall flange dimensions: 70mm x 26mm
Hole spacing: 50mm
Hole diameter: 9mm
Total length: 220mm
Flex piece length: 180mm
For / Fits:
Garrett T-loaders or large GT ( e.g. GT42)
Garrett T3
Garrett T3/T4
Garrett GT32
Garrett T4 , T04
>Garrett GT37R
Garrett GT40 , GT42 , GT45 , GT47
Garrett GTX40, GTX42, GTX45, GTX47
Garrett GT4082
Garrett GT4088, GT4088R, GTX4088R
Garrett GT4708, GT4708R
Garrett GT4718 , 788
Garrett GT40R , GT4088R
Garrett GT40/42R , GT4042R , GT4094R , GTX4094R
Garrett GT42, GT4294, GT4202, GT4294R, GT4202R, GTX4202R
Garrett GT45R , GT4508R , GTX4508R
Garrett GT47R , GT4780R , 08R
Garrett GT47R , GT4788R , GT4718R
BorgWarner AirWerks S200, S200SX
BorgWarner AirWerks S300, S300SX3
BorgWarner AirWerks S400, S400SX3, S400SX4
BorgWarner AirWerks S500, S500SX
BorgWarner AirWerks S510
some BorgWarner KKK turbochargers like K24 K26 K27.
This Product May Fit Other Turbo Chargers, Contact us if you are unsure of fitment HERE
